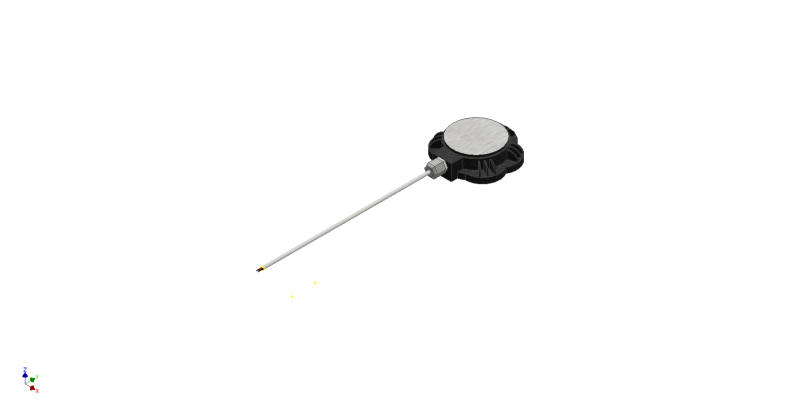

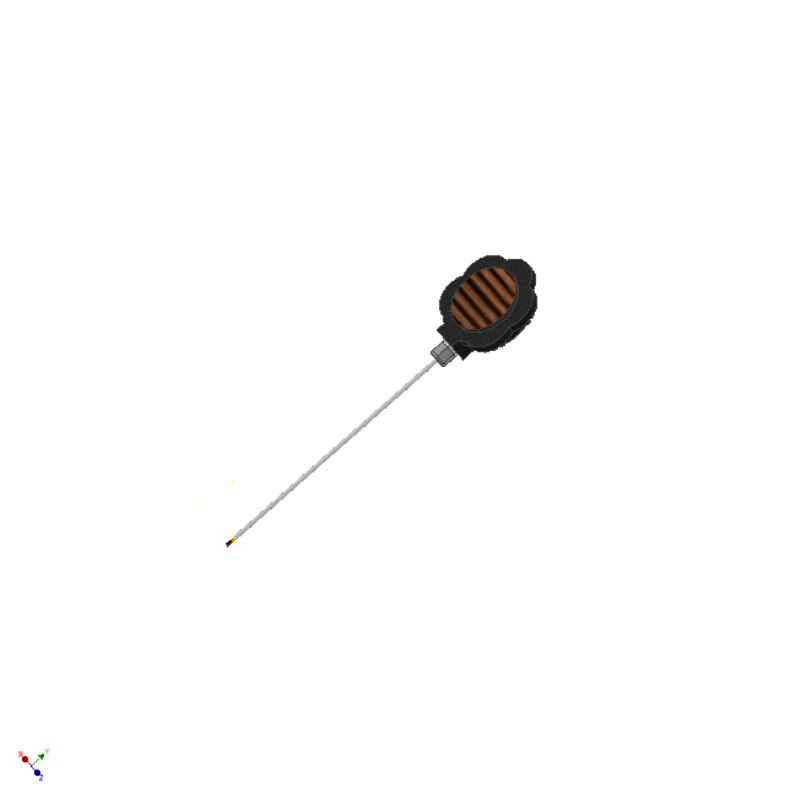

ASX07008-WP-R

Description
  • Completely water and dust-proof when mounted inside a sealed device
  • Can be used with amplifiers and drive circuits designed for speakers
  • Transforms almost any surface into a speaker
  • 70 mm exciter
Dimensions
  • Units: mm
  • Length: 70.20
  • Width: 70.20
  • Height: 21.00
  • Shape: Pinwheel
Features
  • 3M™ VHB™ F-9473PC double-sided adhesive for peel-and-stick mounting
Electrical Specifications
  • Device Type Exciter
  • Technology Electro-Mechanical
  • Mount Type Lead Wire
  • Rated Input Power 5 W
  • Resonant Frequency 1200 Hz
  • SPL at 10cm 82 dB
  • Impedance 8 Ohm
  • Frequency Range Min 1200.00 Hz
  • Frequency Range Max 10500.00 Hz
