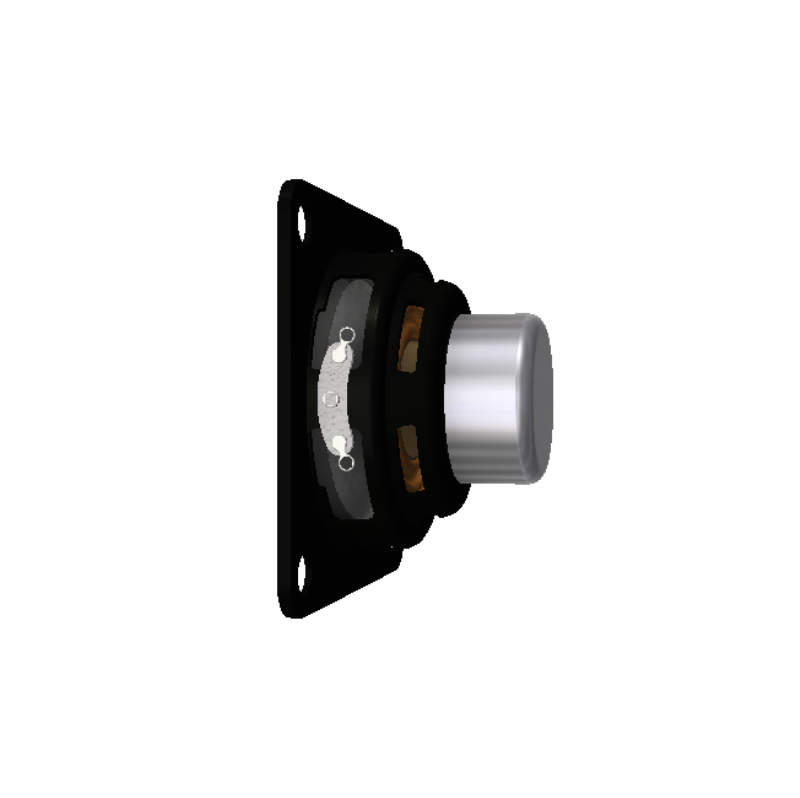

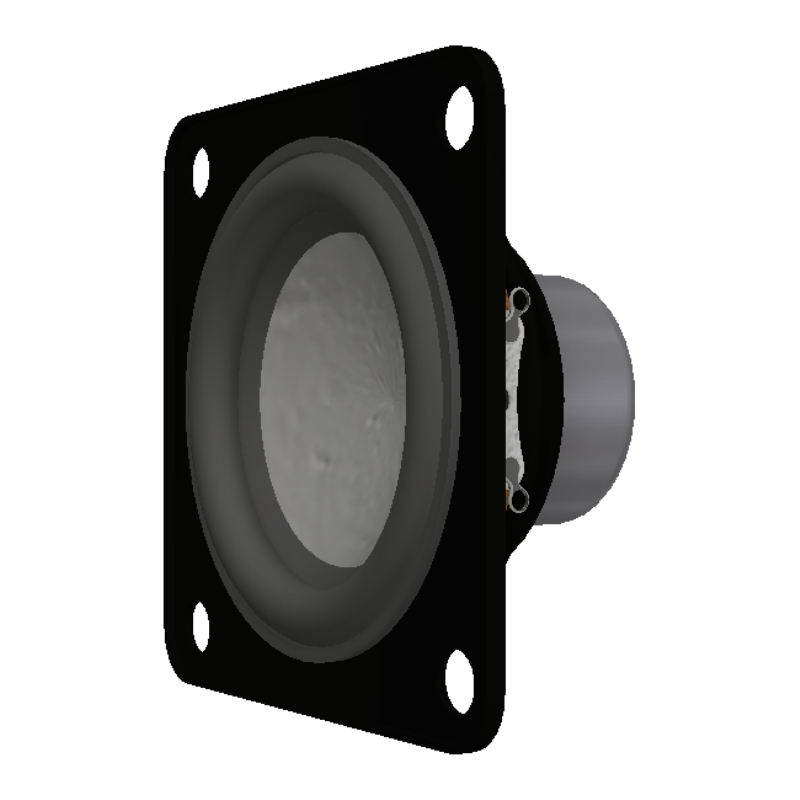

AS06504PS-X-R

Description
  • Four-layer copper-clad aluminum wire for great transient response
  • Water resistant with optional PUI Audio WR coating process
  • Low Qts design for use in ultra-small enclosures without inhibiting performance
  • Designed for use with two APR050SO-Rs for improved bass response
Dimensions
  • Units: mm
  • Length: 65.00
  • Width: 65.00
  • Height: 36.70
  • Shape: Square
Features
  • Venting in the magnetic motor creates forced-air cooling limiting power compression
Electrical Specifications
  • Device Type Speaker
  • Technology Electro-Mechanical
  • Mount Type Flange
  • Rated Input Power 10 W
  • Resonant Frequency 130 Hz
  • SPL at 10cm 101 dB
  • Impedance 4 Ohm
  • Frequency Range Min 80.00 Hz
  • Frequency Range Max 20000.00 Hz
