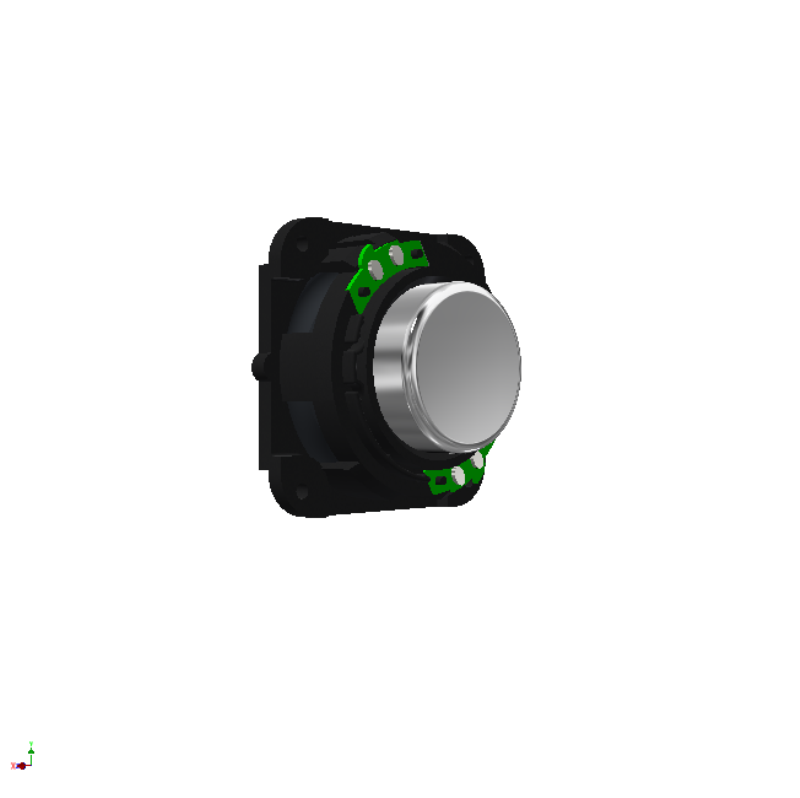

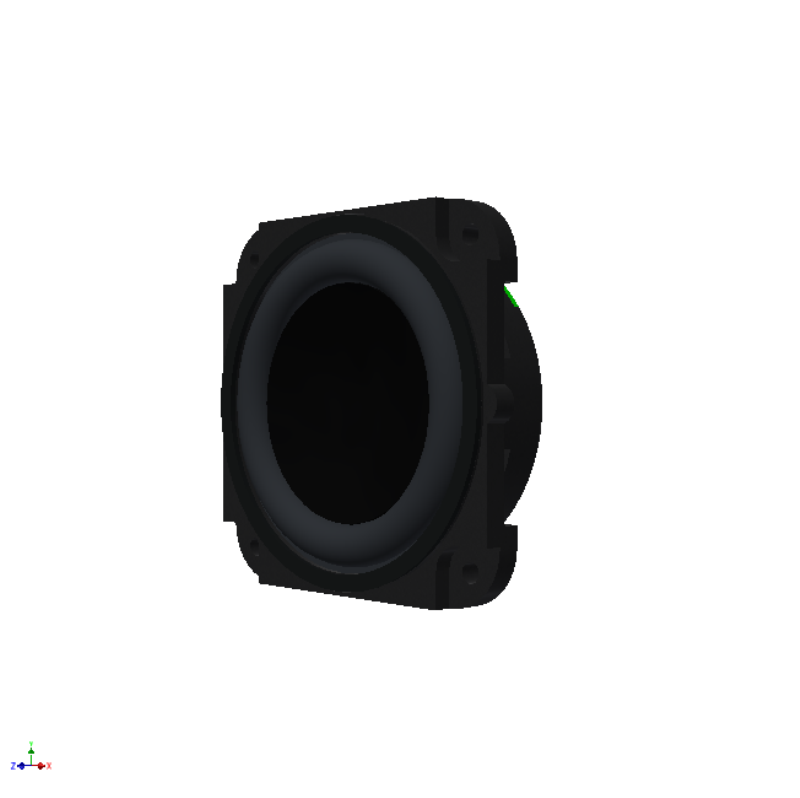

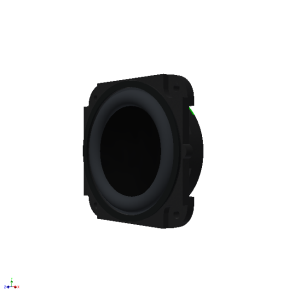

AS03204MS-3-R

Description
  • Only 16.5 mm thick
  • 1.5mm of excursion
  • Ultra-wide band frequency response
Dimensions
  • Units: mm
  • Length: 32.70
  • Width: 31.70
  • Height: 16.50
  • Shape: Square
Features
  • IP67 rated speaker face
Electrical Specifications
  • Device Type Speaker
  • Mount Type Flush
  • Rated Input Power 3 W
  • Resonant Frequency 200 Hz
  • SPL at 10cm 97 dB
  • Impedance 4 Ohm
  • Frequency Range Min 200.00 Hz
  • Frequency Range Max 20000.00 Hz
