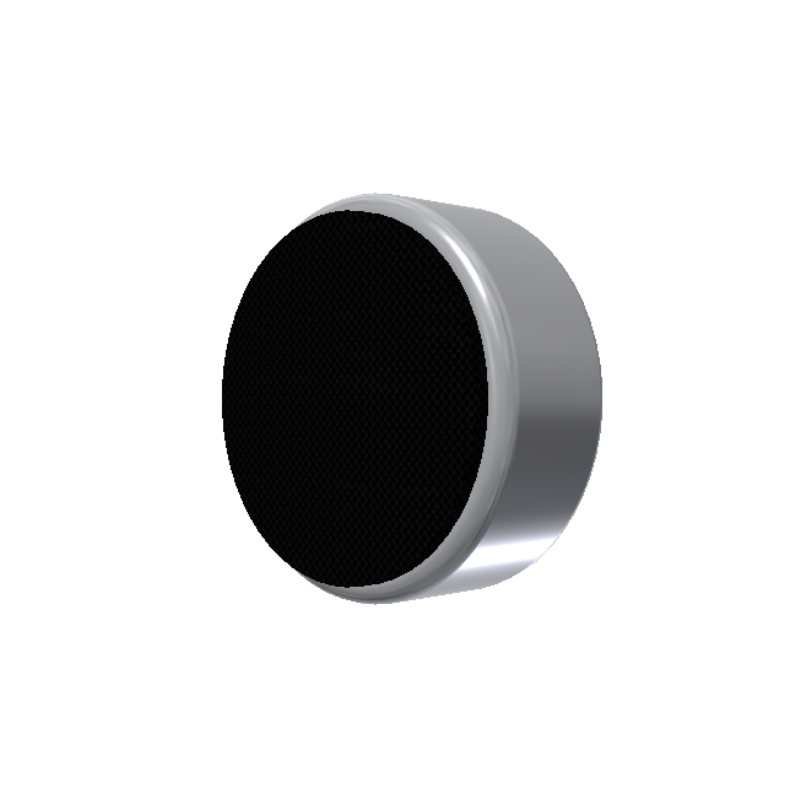

TOM-1537L-HD-R

Description
  • Extremely small 4mm diameter and 1.65mm height for modern devices
  • -37 dB sensitivity paired with 68 dBA signal-to-noise ratio

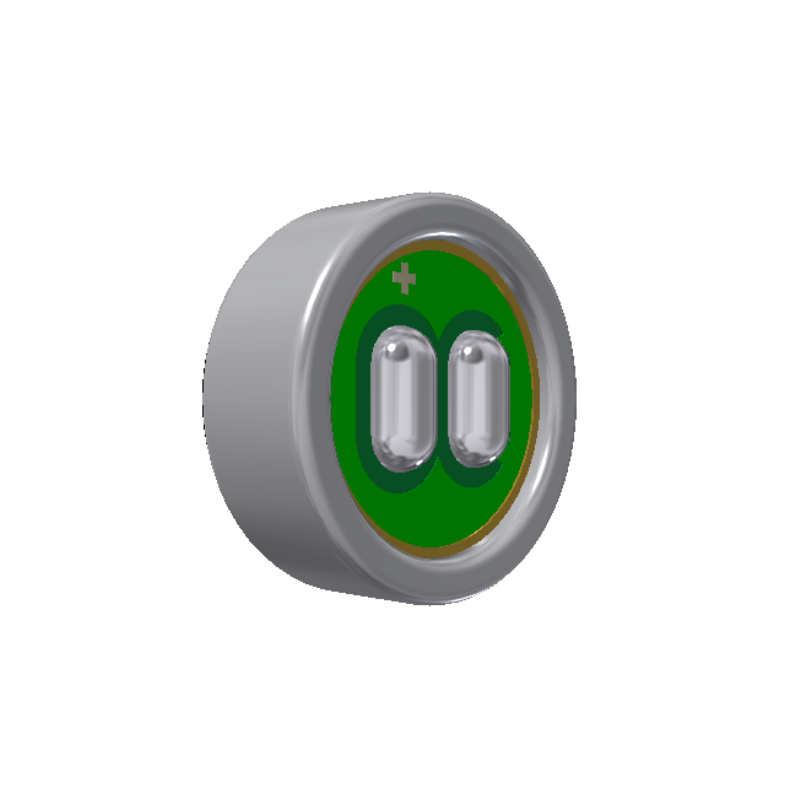

  • Solder pads for simple connection
Dimensions
  • Units: mm
  • Length: 4.00
  • Width: 4.00
  • Height: 1.65
  • Mic Diameter: 4.00
Features
  • True 20 Hz to 20 kHz frequency response
Electrical Specifications
  • Device Type Microphone
  • Technology Electret
  • Mount Type Solder Pad
  • Package Size 4 x 1.65 mm
  • Directivity Omni-Directional
  • Rated Voltage 2 Vdc
  • Sensitivity -37 ± 3 dB
  • Impedance 2.2 kOhm
