DMM-4326-T-R

Description
  • Low Power and Full Power Modes for preserving battery life when needed
  • Tightly controlled ±1 dB sensitivity

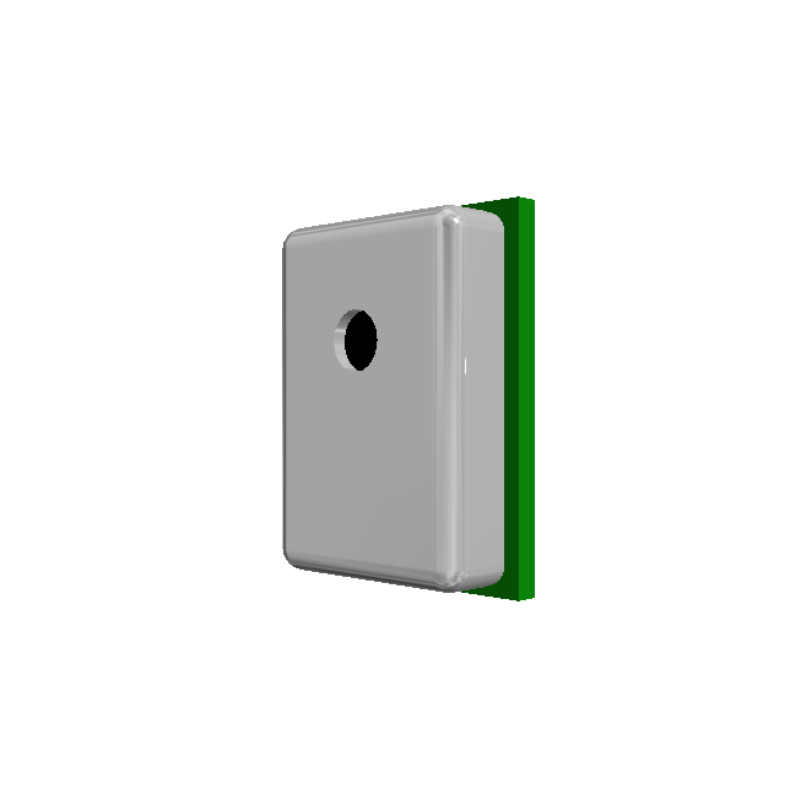

  • Compact size with top acoustic port
Dimensions
  • Units: mm
  • Length: 4.00
  • Width: 3.00
  • Height: 1.05
Features
  • Digital MEMS microphone with PDM output
Electrical Specifications
  • Device Type Microphone
  • Technology MEMS
  • Mount Type Surface Mount
  • Package Size 4 x 3 x 1.05 mm
  • Directivity Omni-Directional
  • Rated Voltage 1.8 Vdc
  • Sensitivity -26 ± 1 dB
