DMM-3526-B-R

Description
  • Low Power and Full Power Modes for preserving battery life when needed
  • Tightly controlled ±1 dB sensitivity

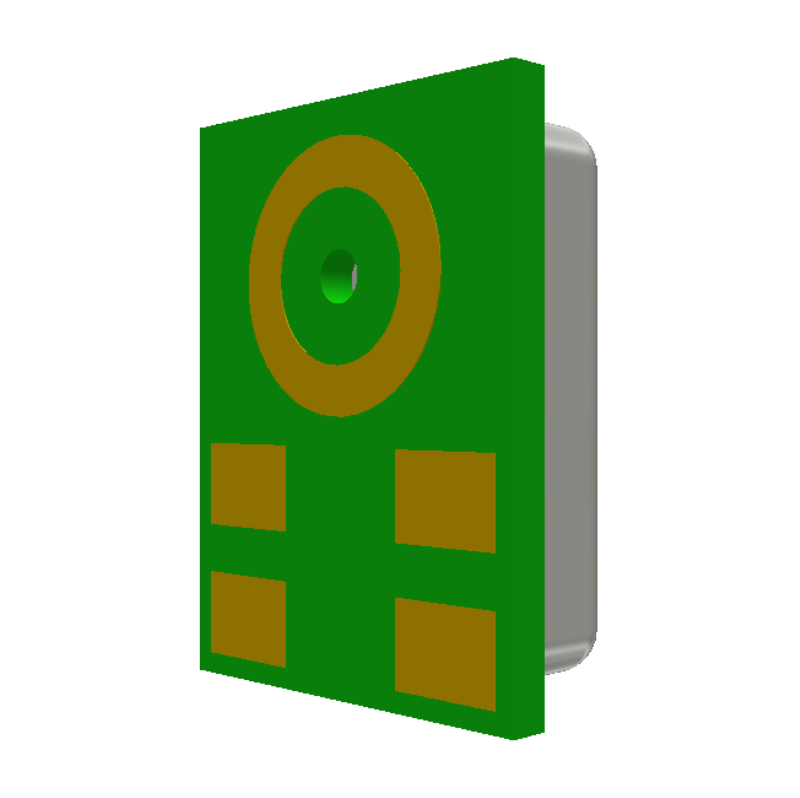

  • Compact size with bottom acoustic port
Dimensions
  • Units: mm
  • Length: 2.65
  • Width: 3.50
  • Height: 0.98
Features
  • Digital MEMS microphone with PDM output
Electrical Specifications
  • Device Type Microphone
  • Technology MEMS
  • Mount Type Surface Mount
  • Package Size 3.5 x 2.65 x 0.98 mm
  • Directivity Omni-Directional
  • Rated Voltage 1.8 Vdc
  • Sensitivity -26 ± 1 dB
