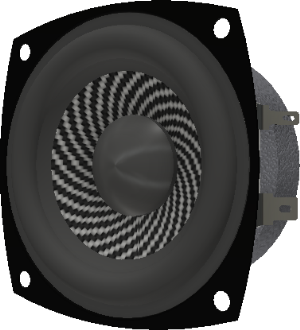

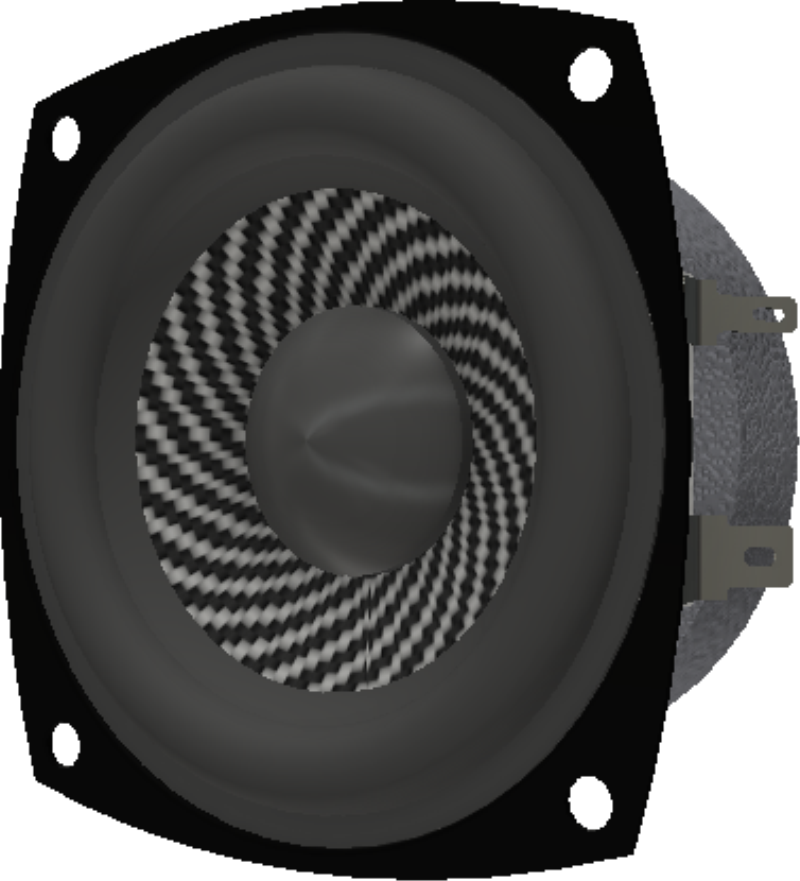

AS08304CR-R

Description
  • Capable of over 94 dB of output at 1 meter
  • Ultra-wide frequency response of 70 to 20,000 Hz
  • Convenient mounting flange
Dimensions
  • Units: mm
  • Length: 68.00
  • Width: 68.00
  • Height: 45.60
  • Shape: Round
Features
  • Woven glass-fiber cone and rubber surround for weather resistance
Electrical Specifications
  • Device Type Speaker
  • Technology Electro-Mechanical
  • Mount Type Flange
  • Rated Input Power 7 W
  • Resonant Frequency 109 Hz
  • SPL at 10cm 102 dB
  • Impedance 4 Ohm
  • Frequency Range Min 70.00 Hz
  • Frequency Range Max 20000.00 Hz
