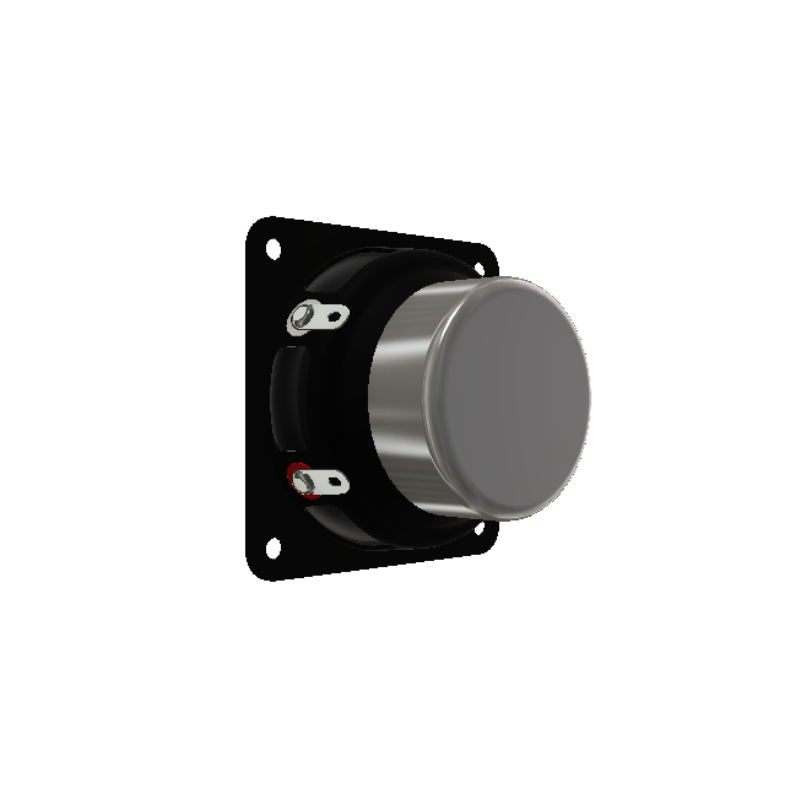

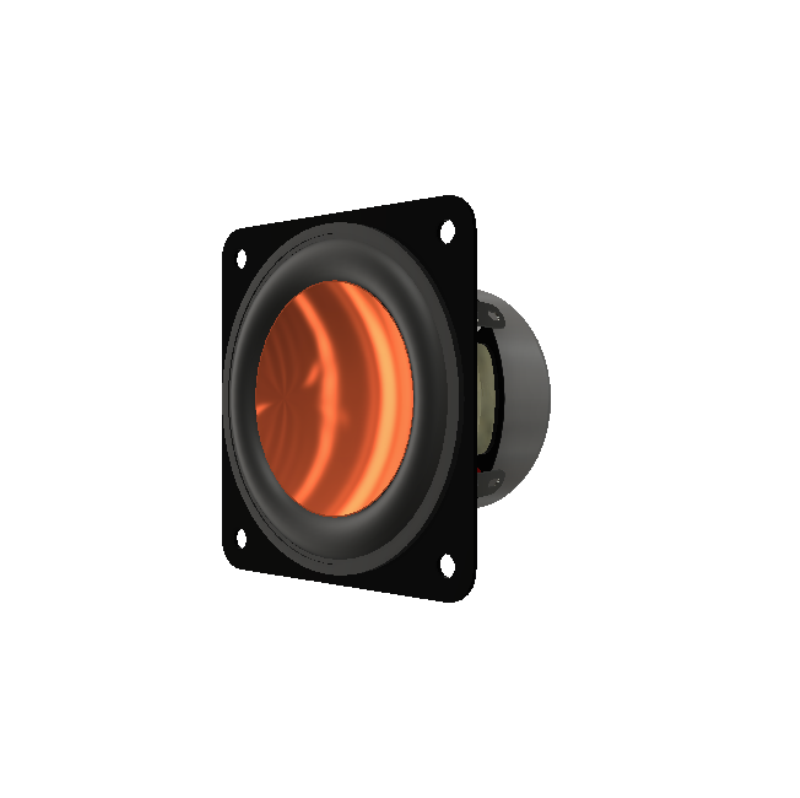

AS05308AS-R

Description
  • High-energy neodymium motor
  • 78 dB output at 1m (98 dB output at 10cm)
  • Coated alloy cone for extended frequency response to 40 kHz
Dimensions
  • Units: mm
  • Length: 53.00
  • Width: 53.00
  • Height: 34.00
  • Shape: Square
Features
  • Easy-to-mount square frame
Electrical Specifications
  • Device Type Speaker
  • Technology Electro-Mechanical
  • Mount Type Flange
  • Rated Input Power 10 W
  • Resonant Frequency 230 Hz
  • SPL at 10cm 98 dB
  • Impedance 8 Ohm
  • Frequency Range Min 230.00 Hz
  • Frequency Range Max 40000.00 Hz
