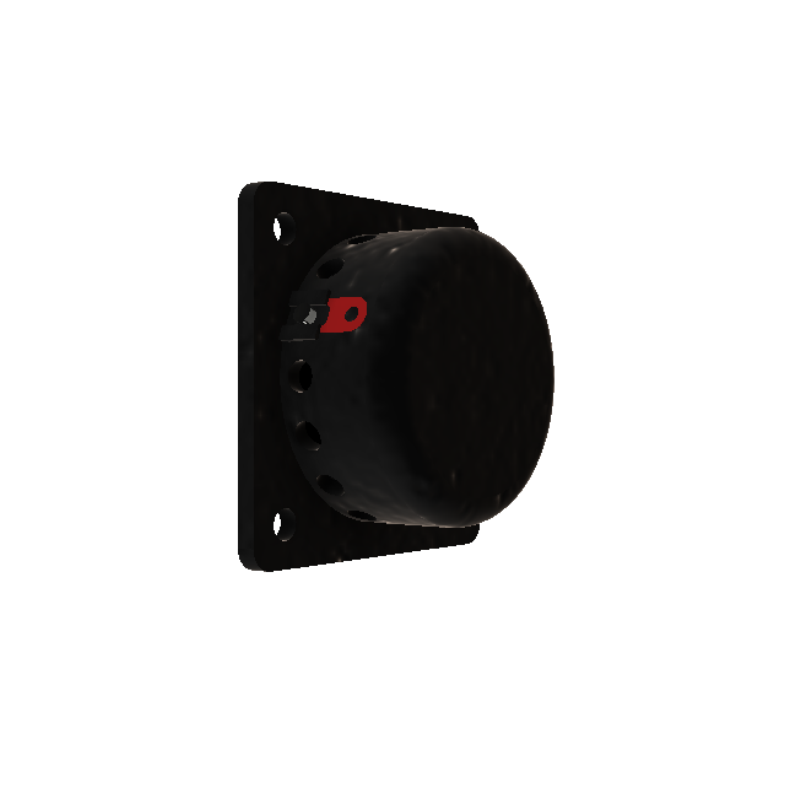

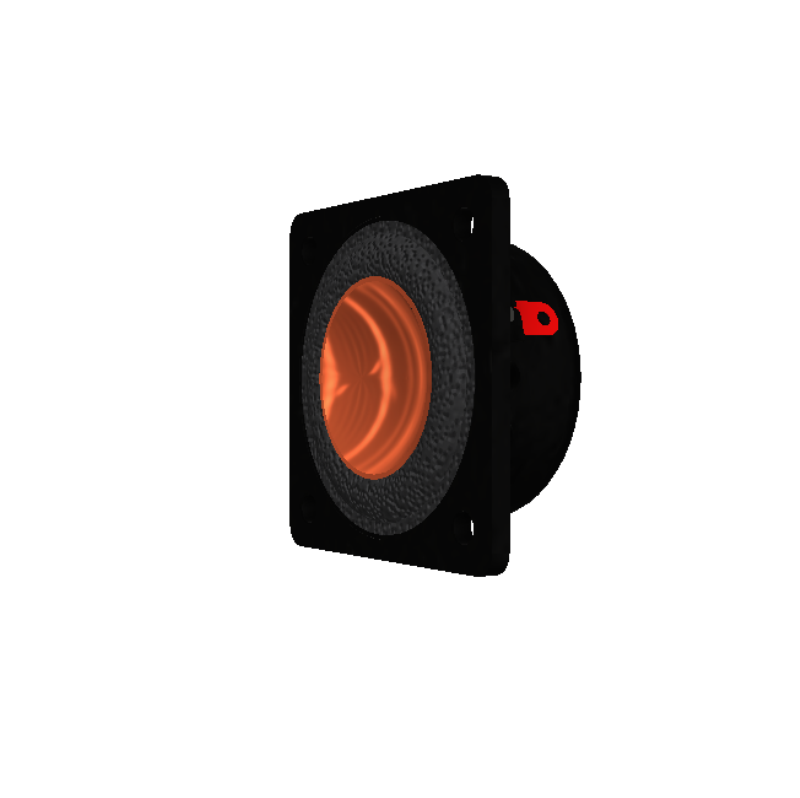

AS03608AS-R

Description
  • Large 20mm diameter voice coil
  • Easy-to-mount square frame
  • Flat, high-fidelity frequency response down to 250 Hz
Dimensions
  • Units: mm
  • Length: 36.00
  • Width: 36.00
  • Height: 16.80
  • Shape: Square
Features
  • Coated alloy cone for extended frequency response to 40 kHz
Electrical Specifications
  • Device Type Speaker
  • Technology Electro-Mechanical
  • Mount Type Flange
  • Rated Input Power 1 W
  • Resonant Frequency 250 Hz
  • SPL at 10cm 98 dB
  • Impedance 8 Ohm
  • Frequency Range Min 250.00 Hz
  • Frequency Range Max 40000.00 Hz
