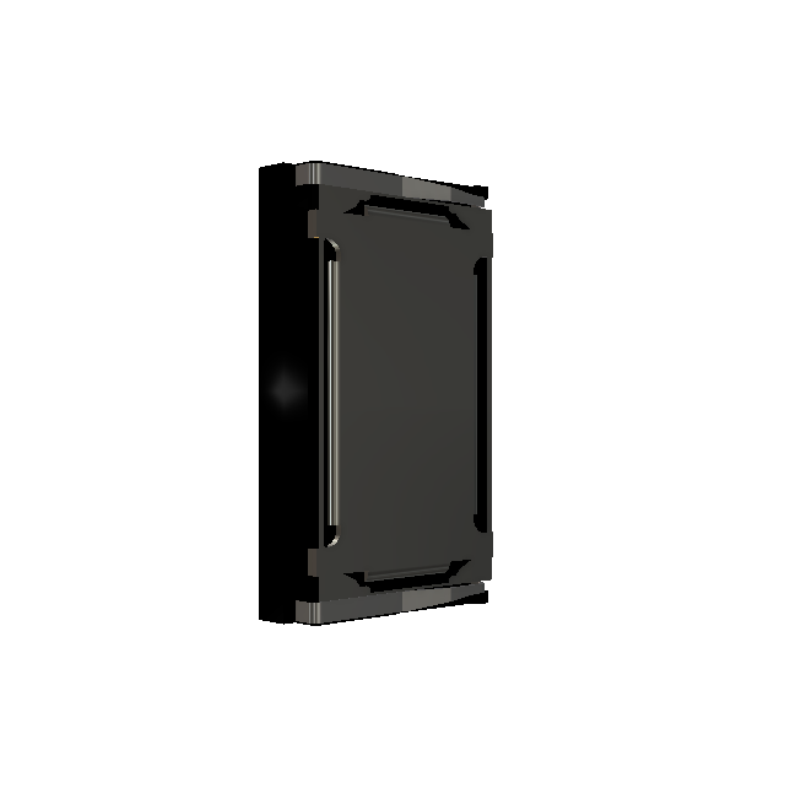

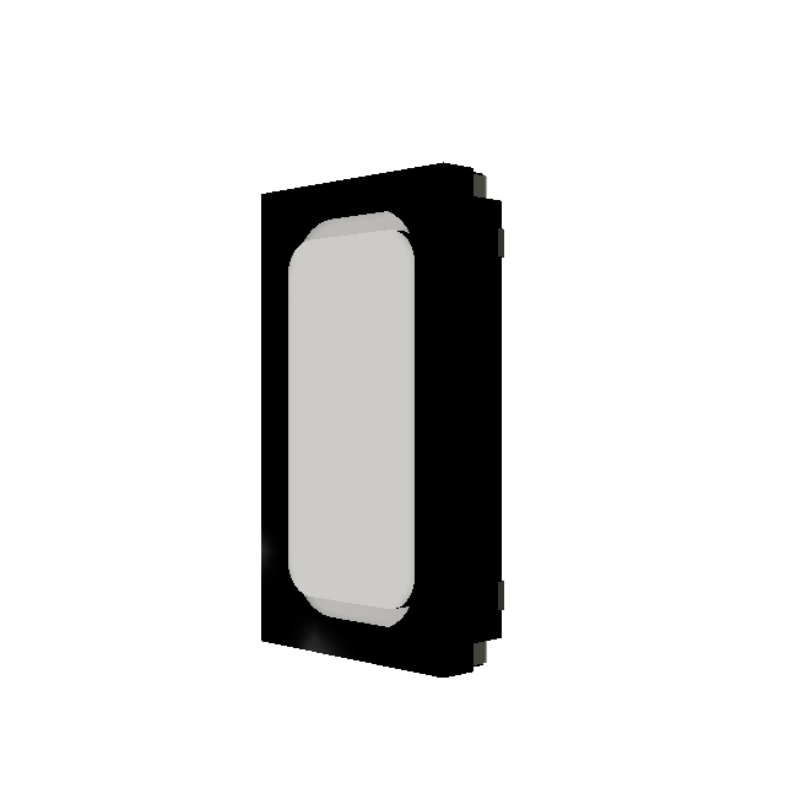

AS01606MS-SC16-WP-R

Description
  • High fidelity audio reproduction in the thinnest size possible
  • PEEK diaphragm for flat frequency response
  • 91 dB output (2.37V @ 10cm)
Dimensions
  • Units: mm
  • Length: 16.00
  • Width: 9.00
  • Height: 3.00
  • Shape: Square
Features
  • Dustproof and waterproof IP67-rated face
Electrical Specifications
  • Device Type Speaker
  • Technology Electro-Mechanical
  • Mount Type Spring Contact
  • Rated Input Power 0.94 W
  • Resonant Frequency 850 Hz
  • SPL at 10cm 91 dB
  • Impedance 6 Ohm
  • Frequency Range Min 500.00 Hz
  • Frequency Range Max 20000.00 Hz
