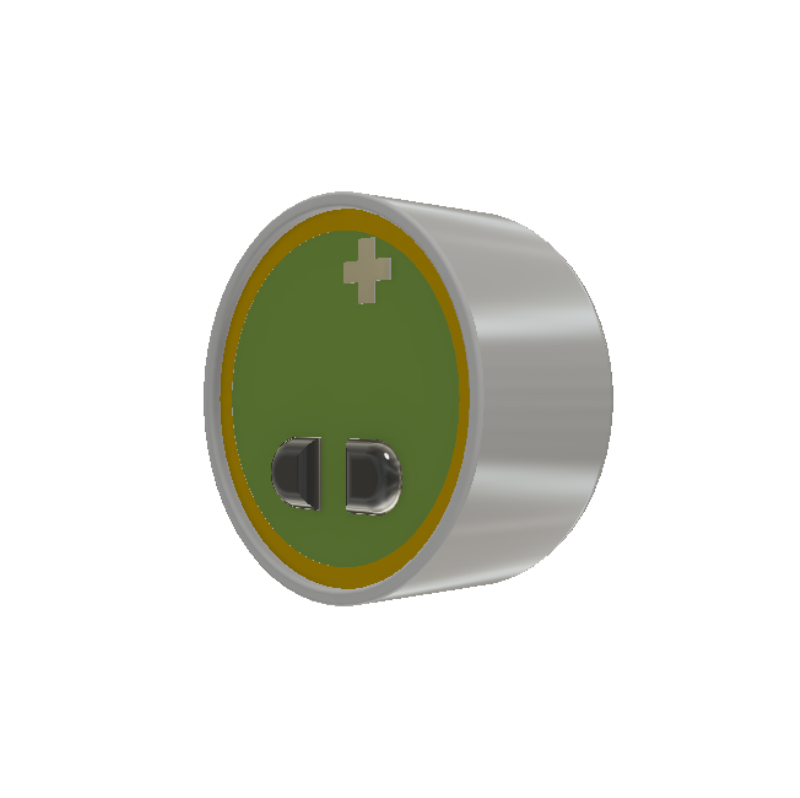

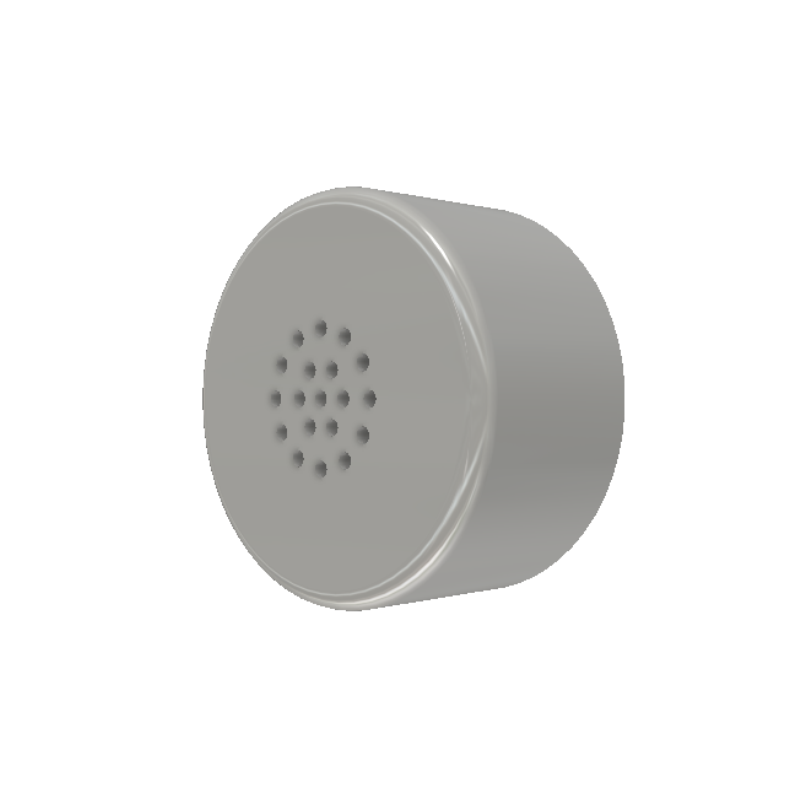

AOM-5024L-HD-R

Description
  • True 20 Hz to 20 kHz frequency response
  • Premium-grade FET and select diaphragm
  • Noise-filtering, GSM buzz-blocking capacitors built-in
Dimensions
  • Units: mm
  • Length: 9.70
  • Width: 9.70
  • Height: 5.00
  • Mic Diameter: 9.70
Features
  • 9.7mm diameter and 5mm height
Electrical Specifications
  • Device Type Microphone
  • Technology Electret
  • Mount Type Solder Pad
  • Package Size 9.7 x 5 mm
  • Directivity Omni-Directional
  • Rated Voltage 3 Vdc
  • Sensitivity -24 ± 3 dB
  • Impedance 2.2 kOhm
