AMM-3742-T-R

Description
  • Ultra-wide 50 Hz to 20,000 Hz frequency response
  • Tightly controlled ±1 dB sensitivity
  • Designed for smart phones and wearable devices

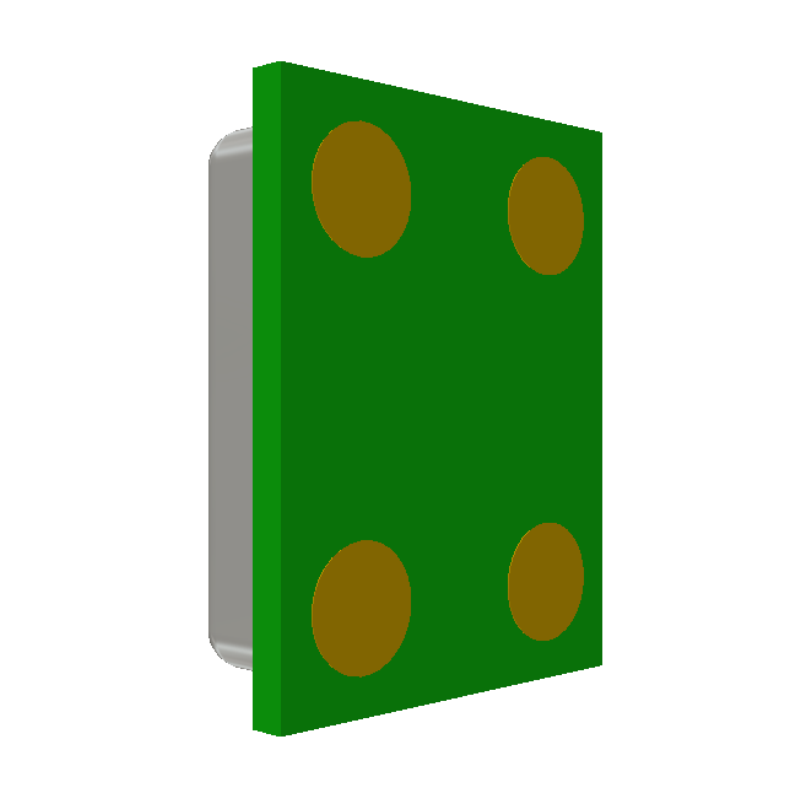

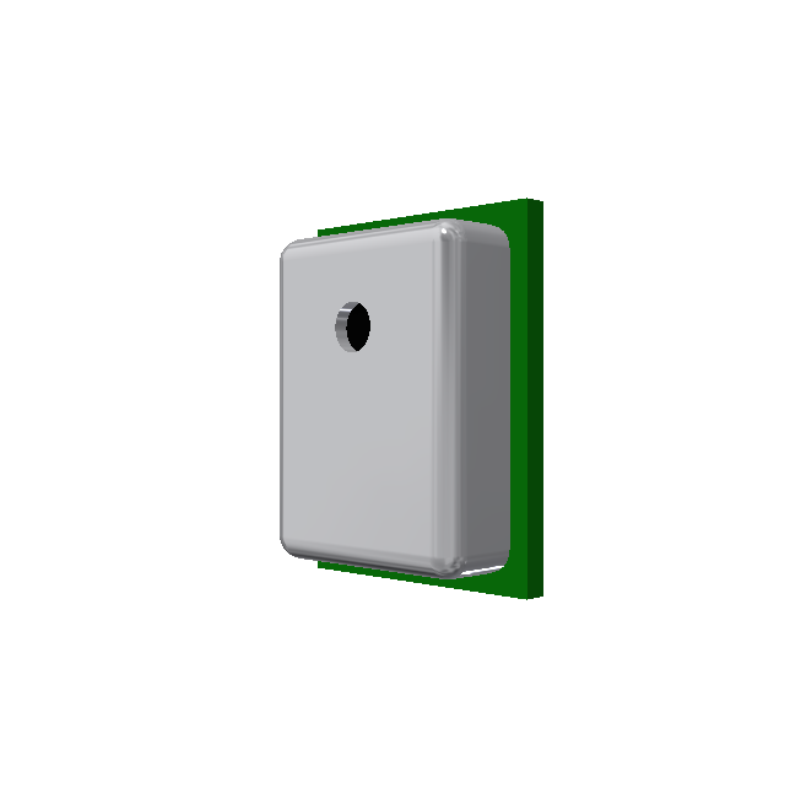

Dimensions
  • Units: mm
  • Length: 3.76
  • Width: 2.95
  • Height: 1.10
Features
  • Popular 3.76 x 2.95mm size
Electrical Specifications
  • Device Type Microphone
  • Technology MEMS
  • Mount Type Surface Mount
  • Package Size 3.76 x 2.95 x 1.1 mm
  • Directivity Omni-Directional
  • Rated Voltage 2 Vdc
  • Sensitivity -42 ± 1 dB
  • Impedance 300 Ohm
